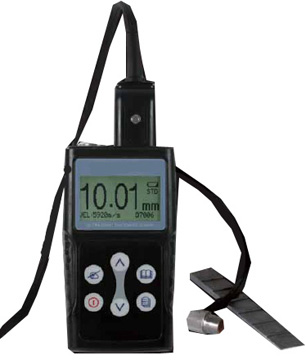

Ultrasonic Thickness Gauge

Order No.: 950-1040
Specifications:

Features:
* Pocket size, easy to operate
* Automatic Probe Zero Calibration
* Automatic Probe identification
* Suitable for various materials such as steel, stainless steel, aluminum, glass, polystyrene, polyethylene
* Average calculation of max 9 readings
* Limits setting Low-High
* Standard 5.0MHz transducer included, optional transducers 7.5MHz, 2.0MHz, 5.0MHz high temperature
* Sound velocity range 1000 up to 9999m/s
* Display resolution selectable at 0.1mm / 0.01
* Memory of eadings with location number

Technical data:
Order No.
950-1040
950-1041
Display:128×64 with backlight
Measuring range:0.65-400mm(0.025-15.78inch) (range depends on probe-material combination)
Velocity rate:1000 - 9999m/s (0.0393 - 0.3936inch/us)
Average mode:2 to 9 times average measurement
-
Limit setting:With Low-High indication and alarm
-
Calibration:Auto
Display Resolution:0.01mm(0.0001 inch)for thickness up to 99.99mm(3.936 inch) 0.1mm(0.001inch) for thickness above 99.99mm(3.93 inch)
Measuring units:mm/inch
Memory:Memory of max.5000 readings with location number
-
Data output:USB to PC
-
Surface temperature:-15℃ to +150℃ (special probes available)
Battery indicator:Low battery voltage indicator
Power supply:AAA dry cell 1.5V (2 pcs)
Dimensions:115×64×27mm
Weight:220g including batteries

Standard delivery:
* Main unit
* Standard 5MHz transducer
* Operation manual
* Two AAA batteries
* Built-in calibration block 4mm
* Carrying case
* Couplant 40 Oz
* Certificates
* Software and cable

Optional transducers:
* 5MHz transducers
* 7.5MHz transducers
* 2MHz transducers
* 10MHz transducers

Specifications are subject to change.
