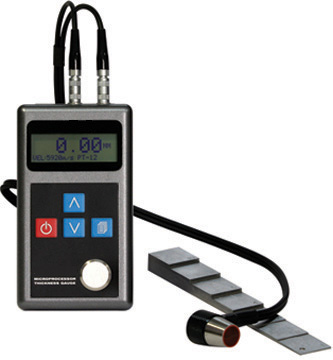

950-1089
Specifications:
Features:
* Pocket size, easy to operate
* Suitable for various materials such as steel,stainless steel, aluminum , glass, polystyrene, polyethylene
* Average calculation of max 9 readings
* Limits setting Low-High
* Standard 5.0MHz transducer included, optional transducers 7.5MHz, 2.0MHz, 5.0MHz high temperature
* Sound velocity range 1000 up to 9999m/s
* Display resolution selectable at 0.1mm / 0.01 inches and 0.01mm /0.001 inches
* Fast calibration on integrated standard block of 4.00mm
* Memory of 4000 readings with location number, RS232 output to pc or printer (950-1090)
Standard Delivery:
*Main unit
* Cleaning brush
* Standard 5MHz probe PT-08
* Certification
* Operation manual
* Two AAA batteries
* Built-in calibration block
* Carrying case
* Couplant
Optional transducers:
*Probe ZT-12 2.0Mhz
* Probe GT-13 5.0Mhz H.T.
* Probe PT-04 7.5Mhz
* Probe PT-06 7.5Mhz
* Probe PT-08 5.0Mhz
* Probe PT-12 5.0Mhz
* Mini-printer and cable
* Software and cable
Technical specification:
| Order No. |
950-1089 |
950-1090 |
| Display：128×32 LCD with backlight |
√ |
√ |
|
Measuring range：0.7 - 250.0mm (0.027 - 9.843inch)
(range depends on probe-material combination) |
√ |
√ |
|
| Velocity rate：1000 - 9999m/s (0.0393 - 0.3936inch/us) |
√ |
√ |
| Average mode：2 to 9 times average measurement |
- |
√ |
| Limit setting：With Low-High indication and alarm |
- |
√ |
| Calibration：On integrated 4.0mm steel standard plate |
√ |
√ |
| Display Resolution：0.01mm for thickness up to 99.99mm 0.1mm for thickness above 99.99mm |
√ |
√ |
|
| Measuring units：mm/inch |
√ |
√ |
| Memory：Memory of max. 4000 readings with location number |
- |
√ |
| Data output：RS-232 to pc or mini-printer |
- |
√ |
| Surface temperature：Standard -15℃ to +150℃(special probes available) |
√ |
√ |
|
| Battery indicator：Low battery voltage indicator |
√ |
√ |
| Power supply：AAA dry cell 1.5V (2 pcs) |
√ |
√ |
| Dimensions：61mm×108mm×26mm |
√ |
√ |
| Weight：150g including batteries |
√ |
√ |
Specification for transducers:
|
Transducers |
Frequency |
Measuring Range |
Diameter |
Temperature |
Measurement for steel pipe size |
Application |
|
PT-12 |
5MHz |
1.0-250mm |
Ø 12 |
＜60℃ |
Ø 10×1.2mm |
General use |
|
PT-08 |
5MHz |
0.8-200mm |
Ø 10.8 |
＜60℃ |
Ø 10×1.2mm |
General use |
|
PT-06 |
7.5MHz |
0.7-50mm |
Ø 8.5 |
＜60℃ |
Ø 10×1mm |
For thin material |
|
PT-04 |
7.5MHz |
0.8-20mm |
Ø 5 |
＜60℃ |
- |
For thin material |
|
ZT-12 |
2.0MHz |
2.0-350mm |
Ø 16.3 |
＜60℃ |
Ø 30×3mm |
For |
|
GT-13 |
5.0MHz |
2.0-100mm |
Ø 13 |
＜350℃ |
Ø 20×2mm |
For High tempureture |
