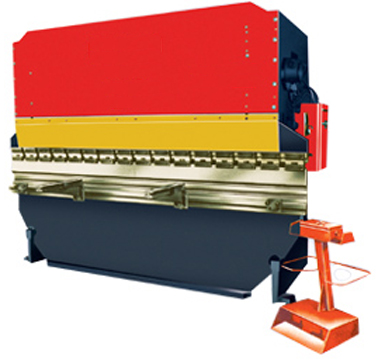

Hydraulic Press Brake
|
|
Order No.: 840-0203
Specifications: 100t/3200mm
Performance:
*Steel-welded construction, vibration to eliminate stress, with high strength and good rigidity.
*Hydraulic top-drive, steadiness and reliability.
*Mechanical stop, steel torsion bar to maintain synchronization, high precision.
*Motorized-adjusting device of backgauge and rams stroke, fine adjusting by handwheel, numerical display.
*Deflection compensation unit installed on the top die.Manual crowned bottom die holder is adopted for the machine heavier than 250tons and longer than 4000mm.
*Travel limit protection. Full machine guarding with safety interlocker. Main Technical Data:
| Specification |
Nominal Pressure(kn) |
Length of working table(mm) |
The distance of column(mm) |
The depth of throat(mm) |
Slide Stroke(mm) |
Open Height(mm) |
Working speed(mm/s) |
Motor power(kw) |
Overall Dimensions(mm) |
|
|
|
840-0203 |
1000 |
3200 |
2680 |
320 |
120 |
370 |
8 |
7.5 |
3280*1820*2430 |
|
840-0204 |
1000 |
4000 |
3280 |
320 |
120 |
370 |
8 |
7.5 |
4080*1820*2430 |
|
840-0205 |
1600 |
3200 |
2600 |
320 |
200 |
470 |
7 |
11 |
3260*1940*2660 |
|
840-0206 |
1600 |
4000 |
3400 |
320 |
200 |
470 |
7 |
11 |
4060*1940*2660 |
|
840-0207 |
1600 |
5000 |
4100 |
320 |
200 |
470 |
7 |
11 |
5060*1940*2800 |
|
840-0208 |
1600 |
6000 |
4800 |
320 |
210 |
520 |
7 |
11 |
6060*1940*3030 |
|
840-0209 |
2000 |
3200 |
2600 |
320 |
200 |
520 |
7 |
15 |
3260*1940*2865 |
|
840-0210 |
2000 |
4000 |
3400 |
320 |
200 |
520 |
7 |
15 |
4060*1940*2865 |
|
840-0211 |
2000 |
6000 |
4800 |
320 |
200 |
520 |
7 |
15 |
6060*2190*3070 |
|
840-0212 |
2500 |
3200 |
2700 |
400 |
250 |
560 |
7 |
18.5 |
3260*1990*3060 |
|
840-0213 |
2500 |
4000 |
3500 |
400 |
250 |
560 |
7 |
18.5 |
4060*1990*3060 |
|
|
