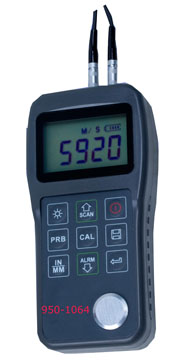

950-1065
Specifications: 0.75mm-300mm
Features:
*Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.
*Transducer models are available for special application, including for coarse grain material and high temperature applications.
*Two-Point Calibration function.
*Two work modes: Single point mode and Scan mode.
*Coupling status indicator showing the coupling status.
*Optional software to process the memory data on the PC.
*Optional thermal mini-printer to print the measured data via RS232 port.
Technical Specifications:
*Display：4.5 digits LCD with EL backlight.
*Measuring Range：0.75～300mm (in Steel).
*Sound Velocity Range： 1000~9999 m/s.
*MT160： 0.1/0.01mm
*Accuracy： +/-（0.5%Thickness+0.04）mm, depends on materials and conditions
*Units: Metric/Imperial unit selectable.
*Four measurements readings per second for single point measurement, and ten per second for Scan Mode.
*Memory for up to 20 files (up to 99 values for each file) of stored values.
*Power Source：Two "AA" size, 1.5 Volt alkaline batteries. 100 hours typical operating time (EL backlight off).
*Communication：RS232 serial port.
*Outline dimensions：150mm*74mm*32 mm. Weight：245g
Standard Kit:
*Main body 1piece
*Transducer 1piece
*Couplant 1piece
*Instrument Case 1piece
*Operating Manual 1piece
*Alkaline battery 2pices
Optional Accessories:
*Transducer: N02 Appendix A
*Transducer: N07 Appendix A
*Transducer: HT5 Appendix A
*Mini thermal printer 1piece
*Print cable 1piece
*DataPro Software 1piece
*Communication Cable 1piece
Appendix A: Transducer Selection
|
Model |
Freq
MHZ |
Diam
mm |
Measuring Range |
Lower limit |
Description |
|
N02 |
2 |
22 |
3.0mm～300.0mm（In Steel） |
20 |
for thick, highly attenuating, or highly scattering materials |
|
N05 |
5 |
10 |
1.2mm～230.0mm（In Steel） |
Φ20mm*3.0mm |
Normal Measurement |
|
N05
/90 |
5 |
10 |
1.2mm～230.0mm（In Steel） |
Φ20mm*3.0mm |
Normal Measurement |
|
N07 |
7 |
6 |
0.75mm～80.0mm
（In Steel） |
Φ15mm*2.0mm |
For thin pipe wall or small curvature pipe wall measurement |
|
HT5 |
5 |
14 |
3～200mm （In Steel） |
30 |
For high temperature measurement. |
